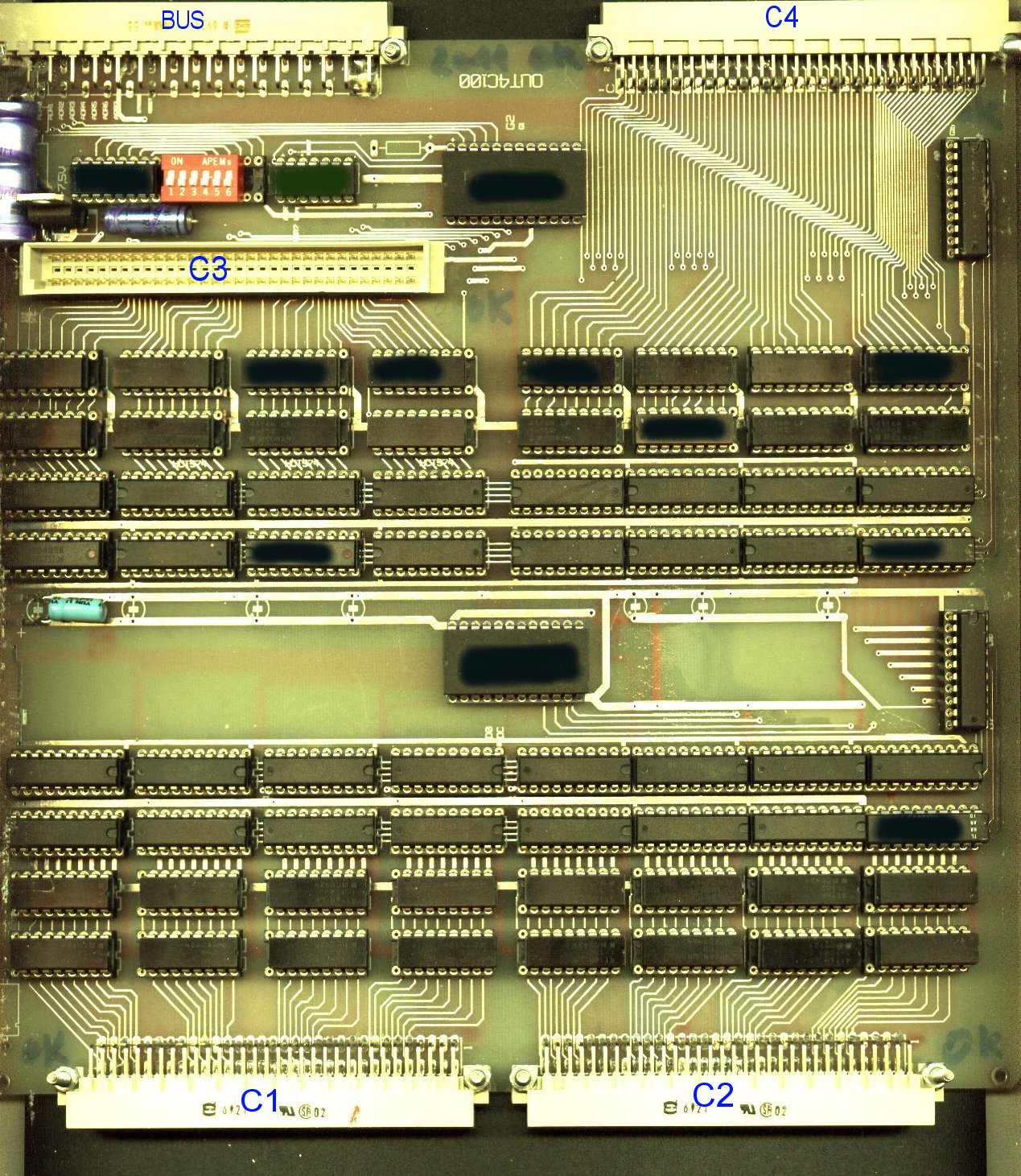

O4x64 POWER OUTPUT BOARDS

• Full isolation from power cards and microelectronic components via the CIPAR board.
• 4 x 64 power outputs
• 4 x 64 pins 41612 standard rack connectors
• Darlington arrays on board : 200mA per output pin.
• Or Darlingtons directly on the magnets for heavy duty magnets.
• Or Darlingtons or Darlington boards

• up to 7A and 50V per each output. (via extra Darlingtons)
• Each 64 outputs can drive in parallel many registers.

• Entirely controlled by the KI7_MIDI_USB or the KI6x8x8_MIDI_USB cards.
• Or connected to the PC parallel port of any PC via the CIPAR board.
• 5V supply power required for the cards connected to the CIPAR card.
• Can be plugged on the 32 bits bus with 32 output boards possibly.
• 32x4x32 power outputs up to 7A each output pin. (If extra Darlingtons)
• Convenient for any heavy duty magnets, magnet valves, drawstops.
• Classic slider magnets can be controlled directly by my software, without any extra elctronic interface
• MIDI INTERFACE via KI7_MIDI_USB or KI6x8x8_MIDI_USB boards
